THIS IS THE WINCH, NOT THE STEERING SERVO
This is the same servo winch we offer as package deal on the CEN F450 Front bumper. The mount is designed for this micro servo, as it is capable of DEADLIFTING 7LBS!!!!! Great little winch for show and fun on the CEN F450.
Package Includes:

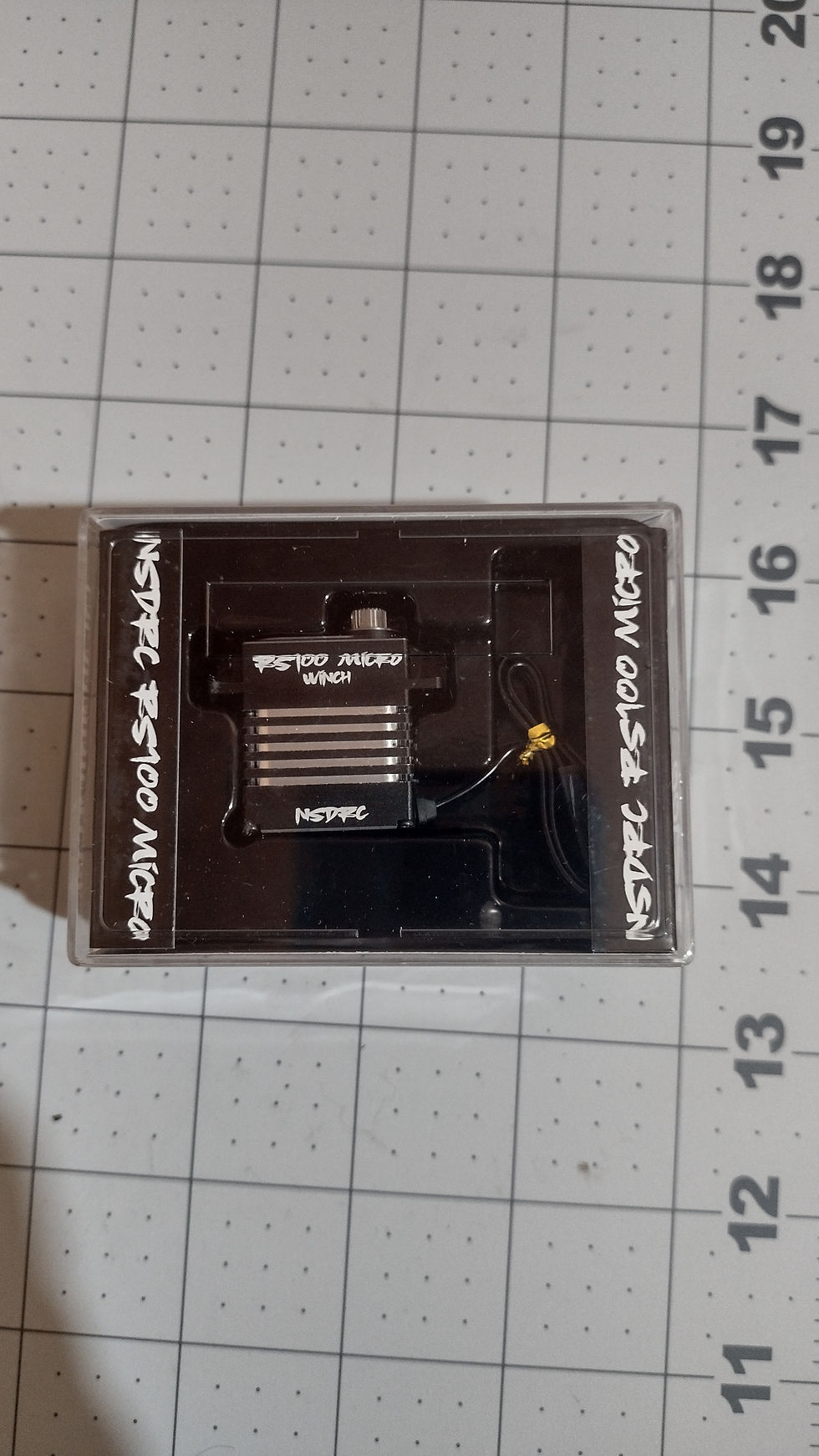

RS100 MW High Torque/Speed Micro Servo Winch
From the manufacturer:
RS100MW High Torque/Speed Micro Servo Winch
Comes with Custom Cnc Aluminum Micro Spool
Winch controller built in, no controller needed!
Splashproof/Resistant, NOT Submersible
Full Cnc Aluminum Case
Hardened Steel Gears
Quality Coreless Motor
Spline: 25T 4.9mm Micro
Voltage: 5V-8.4V
Bearing: 2BB
Wire Length: 185mm
Weight: .70 oz / 20 Grams Without Spool
Dimensions: 23 x 12 x 26mm
Torque: 90 oz @ 5v
100oz @ 6v
120oz @ 7.4v
130oz @ 8.4v
Speed: .10 @ 5v
.08 @ 6v
.07 @ 7.4v
.06 @ 8.4v
*200# Winch Line and Hook available separately
Warranty: 6 Month Warranty from all defects. NSDRC assume no liability of damage caused by mistreatment, excessive bashing, abuse, water, or any use other than recommended. 8.4v Max. Nothing is unbreakable! For all issues, you will need to send the servo to NSDRC to be inspected for warranty.
